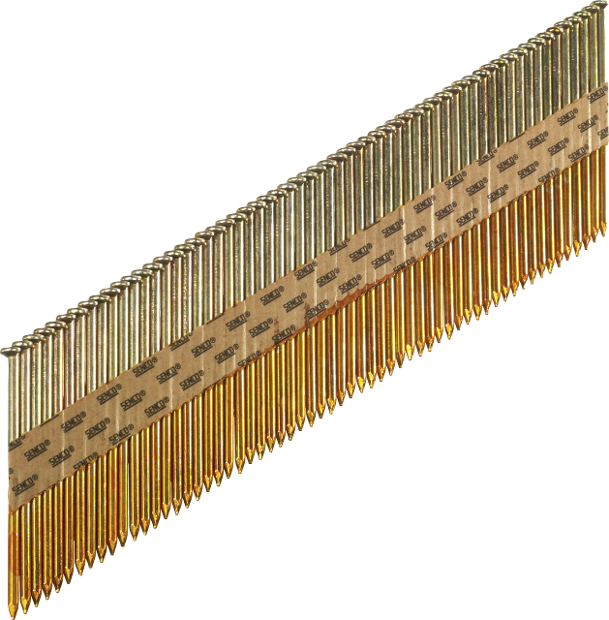

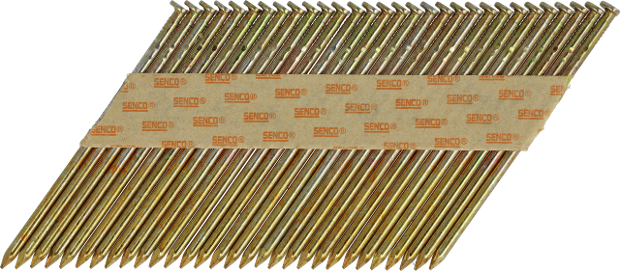

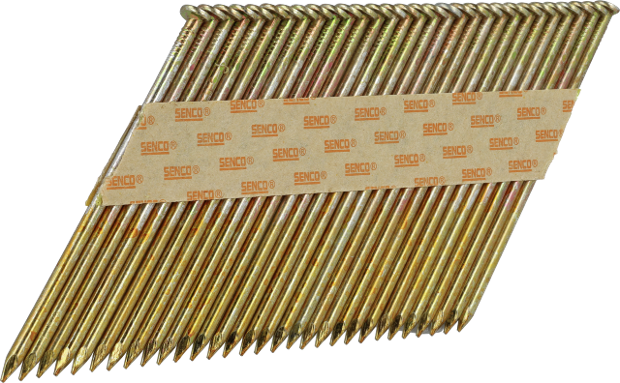

HC glatt maskinspiker 3,1x75mm

Klikk på bildet for å zoome

Beskrivelse

3,1mm glatt maskinspiker, galvanisert, Sencoted

Vis mer Vis mindre

Normversjon EN 14592:2008+A1:2012

Kan vi hjelpe deg?

Spesifikasjoner

Identifikasjon

Varenummer: HC57AABKR
GTIN: 8715274152554

Tekniske spesifikasjoner

Sammensettingsvinkel: 34 °
Bånde type: Papirbåndet
Trådmateriale: Karbonstål standard tensile

Festemidler spesifikasjoner

Overflatebehandling: Galvanisert
Coating: Sencote lim
Applikasjonsmiljø: Beskyttet miljø
Spiker type: CH-maskinspiker
Hode type: D-hode
Type spiker skafte: Rund skaft
Spisstype: Diamantspiss
Spissvinkel: 40 °
Spikerdiameter): 3.1
Antall festemidler per stav/coil: 29 - 31
Spikerlengde: 75.0 mm

CE spesifikasjoner

Karakteristisk gjennom-trekks parameter: 30.1 N/mm²
CE-festetype: Spiker med rundt tverrsnitt og vanlig skaft
DOP No: HC57AABKR
Beskyttelsesnivå i mikron: ≤5
Serviceklasse: 1
Coating type: Coating type 3
Coating lengde: 45.0 mm
Hode tverrsnittsflate: 30.0 mm
Karakteristisk motstandsmoment: 2570.0 Nmm
Karakteristisk strekkfasthet: 633.0 N/mm²
Normversjon: EN 14592:2008+A1:2012
Karakteristisk Uttrekks parameter: 3.1 N/mm²

Andre spesifikasjoner

Pakkestørrelse: 2000

Logistikkspesifikasjoner

Nettovekt: 8.8 kg

Relaterte verktøy

Nedlastinger

HC57AABKR_no_CommercialProductSheet_1.4_1729051129723 PDF 1 Mb
DOP VS-CPR-201305-S028 PDF 124 Kb
HC57AABKR_no_DeclarationOfPerformanceDoP_1.0eu_1729051038822 PDF 61 Kb
