2,87mm glatt maskinspiker, HDG, Sencoted

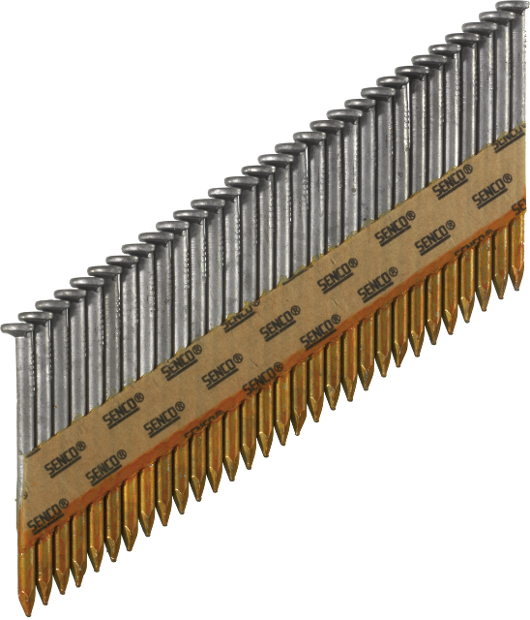

GC glatt maskinspiker 2,87x75mm

Klikk på bildet for å zoome

Beskrivelse

2,87mm glatt maskinspiker, HDG, Sencoted

Vis mer Vis mindre

Bruksområder

Reisverk, Platematerial, Sponplate, Terrassebord, Takstoler, Paller og emballasje

Vis mer Vis mindre

Normversjon EN 14592:2008+A1:2012

Kan vi hjelpe deg?

Spesifikasjoner

Identifikasjon

Varenummer: GC57ASBKR
GTIN: 8715274026886

Tekniske spesifikasjoner

Sammensettingsvinkel: 34 °
Bånde type: Papirbåndet
Trådmateriale: Karbonstål standard tensile

Festemidler spesifikasjoner

Overflatebehandling: Varmgalvanisert 3
Coating: Sencote lim
Applikasjonsmiljø: Helt eksponert
Spiker type: CH-maskinspiker
Hode type: D-hode
Type spiker skafte: Rund skaft
Spisstype: Diamantspiss
Spissvinkel: 40 °
Spikerdiameter): 2.87
Antall festemidler per stav/coil: 29 - 31
Spikerlengde: 75.0 mm

CE spesifikasjoner

Karakteristisk gjennom-trekks parameter: 27.12 N/mm²
CE-festetype: Spiker med rundt tverrsnitt og vanlig skaft
DOP No: GC57ASBKR
Beskyttelsesnivå i mikron: 55
Serviceklasse: 3
Coating type: Coating type 3
Coating lengde: 48.0 mm
Hode tverrsnittsflate: 30.0 mm
Karakteristisk motstandsmoment: 3054.0 Nmm
Karakteristisk strekkfasthet: 695.0 N/mm²
Normversjon: EN 14592:2008+A1:2012
Karakteristisk Uttrekks parameter: 2.45 N/mm²

Andre spesifikasjoner

Pakkestørrelse: 2000

Logistikkspesifikasjoner

Nettovekt: 8.12 kg

Relaterte verktøy

Nedlastinger
