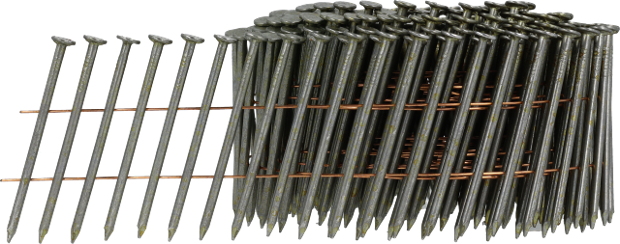

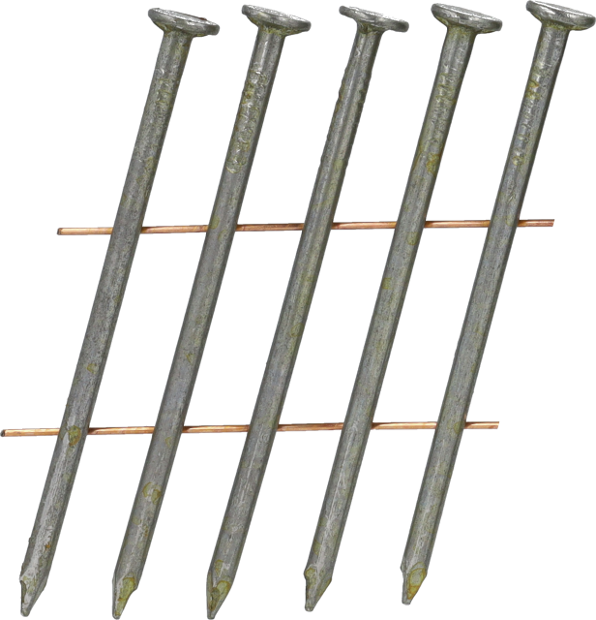

BJ glatt båndspiker 2,5x60mm

Klikk på bildet for å zoome

Beskrivelse

2,5mm flat glatt spiker på bånd, glans grunnleggende, Sencoted

Vis mer Vis mindre

Normversjon EN 14592:2008+A1:2012

Kan vi hjelpe deg?

Spesifikasjoner

Identifikasjon

Varenummer: BJ24APBF
GTIN: 8715274022918

Tekniske spesifikasjoner

Sammensettingsvinkel: 16 °
Coilbandning: Flat
Bånde type: Wirebåndet
Trådmateriale: Karbonstål standard tensile

Festemidler spesifikasjoner

Overflatebehandling: Blank tråd standard tensile
Coating: Sencote lim
Applikasjonsmiljø: Beskyttet miljø
Spiker type: Spiker på bånd
Type spiker skafte: Rund skaft
Spisstype: Diamantspiss
Spissvinkel: 36 °
Min. Gjengoppgang: 8.4 mm
Maks. Gjengoppgang: 8.4 mm
Maks. Utvendig diameter coil: 122 mm
Spikerdiameter): 2.5
Antall festemidler per stav/coil: 275 - 275
Spikerlengde: 60.0 mm

CE spesifikasjoner

Karakteristisk gjennom-trekks parameter: 27.1 N/mm²
CE-festetype: Spiker med rundt tverrsnitt og vanlig skaft
DOP No: BJ24APBF
Serviceklasse: 1
Coating type: Coating type 3
Hode tverrsnittsflate: 27.0 mm
Karakteristisk motstandsmoment: 1575.0 Nmm
Karakteristisk strekkfasthet: 621.0 N/mm²
Normversjon: EN 14592:2008+A1:2012
Karakteristisk Uttrekks parameter: 3.1 N/mm²

Andre spesifikasjoner

Pakkestørrelse: 7425

Logistikkspesifikasjoner

Nettovekt: 17.9 kg

Relaterte verktøy

Nedlastinger

BJ24APBF_no_CommercialProductSheet_1.9_1752211156405 PDF 1 Mb
DOP VS-CPR-201305-S040 PDF 178 Kb
BJ24APBF_no_DeclarationOfPerformanceDoP_1.0eu_1748461354409 PDF 62 Kb
