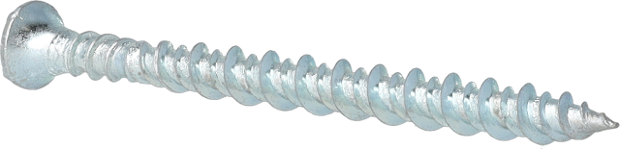

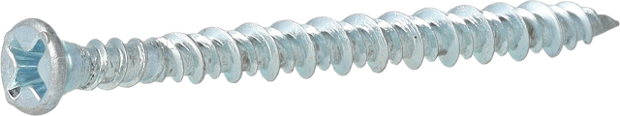

Skrue for montering av gipsplate til tre eller lett stål PH2 elektrogalvanisert 3,9x30mm

Klikk på bildet for å zoome

Beskrivelse

Gipsplate- til tre- eller lett stålskrue, klar sink

Vis mer Vis mindre

Normversjon EN 14566:2008+A1:2009

Kan vi hjelpe deg?

Spesifikasjoner

Identifikasjon

Varenummer: 39U30MCN
GTIN: 8715274251776

Tekniske spesifikasjoner

Bånde type: Plastbåndet
Trådmateriale: Karbonstål standard tensile
Turtall: 3300, 4000, 5000 RPM

Festemidler spesifikasjoner

Overflatebehandling: Elektrogalvanisert
Applikasjonsmiljø: Beskyttet miljø
Spisstype: Skarp spiss
Spissvinkel: 23 °
Hode: Liten hode
Bits: Philips 2
Gjenger: Omvendt fin- og Hi-Lo gjenget
Antall festemidler per stav/coil: 50 - 50
Skruelengde: 30.0 mm
Skruediameter: 3.9 mm

CE spesifikasjoner

DOP No: 39U30MCN
Serviceklasse: 1
Innvendig gjenget diameter: 2.7 mm
Lengde på gjenget del: 25.0 mm
Normversjon: EN 14566:2008+A1:2009

Andre spesifikasjoner

Pakkestørrelse: 4000

Relaterte verktøy

Nedlastinger

39U30MCN_no_CommercialProductSheet_1.7_1752258410985 PDF 1 Mb
DOP DSP980005 PDF 403 Kb
DOP DSP980005 PDF 403 Kb
39U30MCN_no_DeclarationOfPerformanceDoP_1.1eu_1750123875168 PDF 59 Kb
